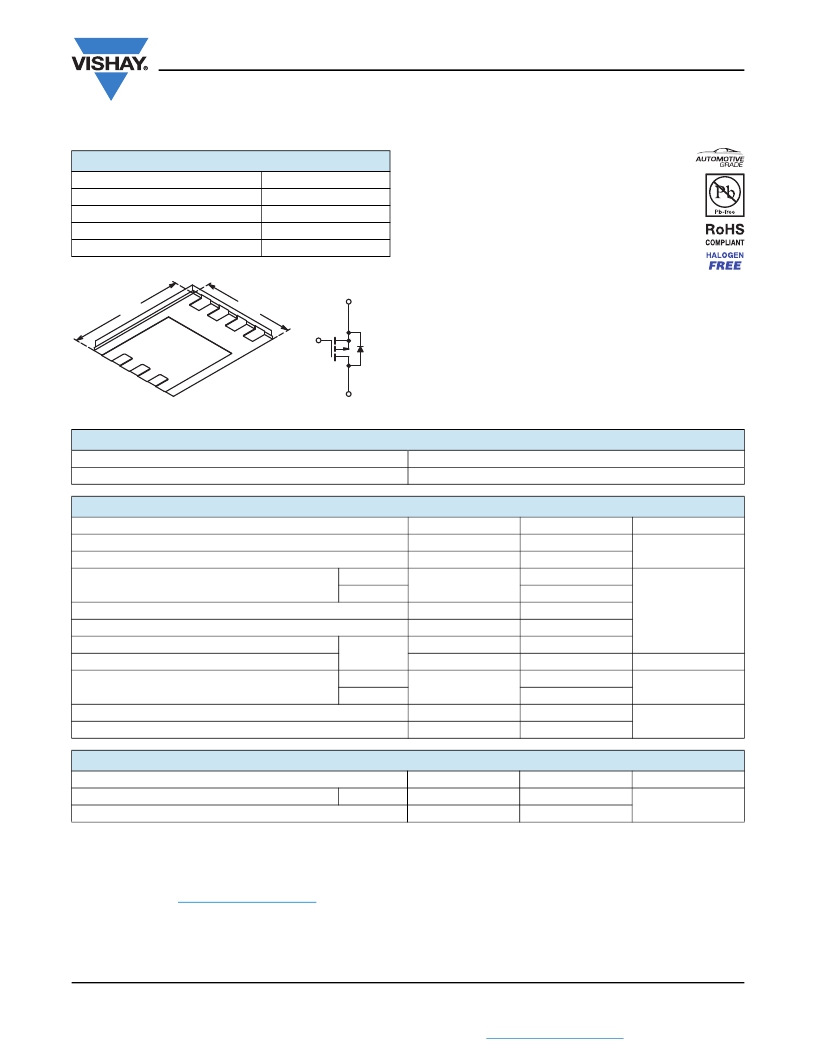

SQS401EN
www.vishay.com
Vishay Siliconix
Automotive P-Channel 40 V (D-S) 175 °C MOSFET
PRODUCT SUMMARY
V DS (V)
R DS(on) ( Ω ) at V GS = - 10 V
R DS(on) ( Ω ) at V GS = - 4.5 V
I D (A)
Configuration
- 40
0.029
0.047
- 16
Single
FEATURES
? Halogen-free According to IEC 61249-2-21
Definition
? TrenchFET ? Power MOSFET
? AEC-Q101 Qualified d
? 100 % R g and UIS Tested
? Compliant to RoHS Directive 2002/95/EC
PowerPAK 1212-8
?
S
3.30 mm
1
S
S
3.30 mm
2
S
3
4
G
G
D
8
7
D
D
6
5
D
Bottom View
Part Marking Code: Q005
ORDERING INFORMATION
Package
Lead (Pb)-free and Halogen-free
D
P-Channel MOSFET
PowerPAK 1212-8
SQS401EN-T1-GE3
ABSOLUTE MAXIMUM RATINGS (T C = 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
SYMBOL
V DS
V GS
LIMIT
- 40
± 20
UNIT
V
Continuous Drain Current a
T C = 25 °C
T C = 125 °C
I D
- 16
- 16
Continuous Source Current (Diode
Pulsed Drain Current b
Single Pulse Avalanche Current
Single Pulse Avalanche Energy
Maximum Power Dissipation b
Conduction) a
L = 0.1 mH
T C = 25 °C
T C = 125 °C
I S
I DM
I AS
E AS
P D
- 16
- 64
- 26
33.8
62.5
20
A
mJ
W
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature) e, f
T J , T stg
- 55 to + 175
260
°C
THERMAL RESISTANCE RATINGS
PARAMETER
SYMBOL
LIMIT
UNIT
Junction-to-Ambient
Junction-to-Case (Drain)
PCB Mount c
R thJA
R thJC
81
2.4
°C/W
Notes
a. Package limited.
b. Pulse test; pulse width ≤ 300 μs, duty cycle ≤ 2 %.
c. When mounted on 1" square PCB (FR4 material).
d. Parametric verification ongoing.
e. See solder profile ( www.vishay.com/doc?73257 ). The PowerPAK 1212-8 is a leadless package. The end of the lead terminal is exposed
copper (not plated) as a result of the singulation process in manufacturing. A solder fillet at the exposed copper tip cannot be guaranteed
and is not required to ensure adequate bottom side solder interconnection.
f. Rework conditions: manual soldering with a soldering iron is not recommended for leadless components.
S11-2129 Rev. C, 31-Oct-11
1
Document Number: 65529
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
